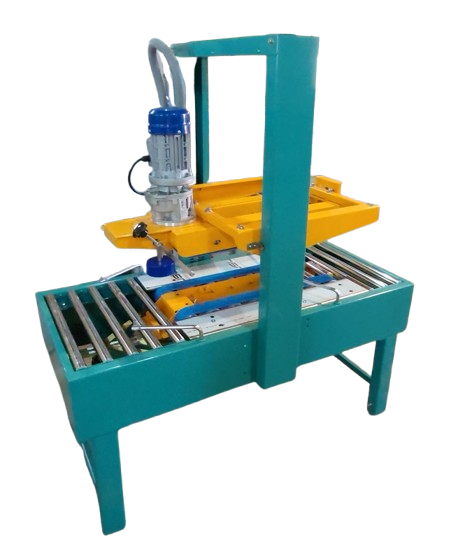

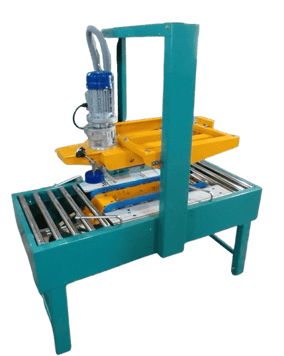

Carton Sealing Machines

Our Carton Sealing Machines are designed and engineered for effective sealing there by reducing the cost incurred with a wide range of carton size. High quality carton sealer cuts operational costs and increases outputs. Gives a perfects seal on top and bottom of the case uniformly and an excellent choice for large volumes.

Carton Size

Length : Min. 220mm Max. unlimited
Width : Min 200mm Max. 700mm
Height : Min 150mm Max. 700mm

Specifications:-

Sealing Speed : 20 M/min
Tape width : 2", 2.5" & 3" optional
Core Diameter : 76 mm
Power Requirement :Two motor of 0.25HP (0.36KW)

Machine Dimension:

L : 1500, W : 970, H : 1620

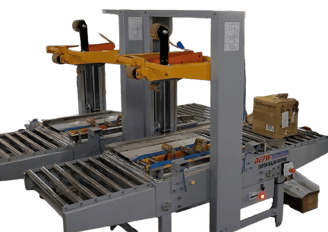

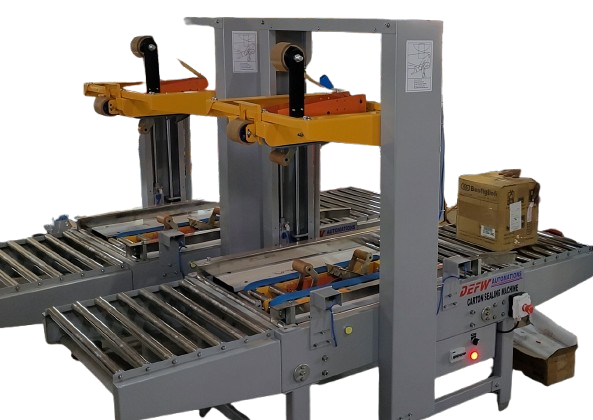

Automatic Carton Sealing Machine

Backed by a team of highly skilled employees, we bring forth a wide array of Automatic Carton Sealing Machines to our clients. These offered machines are made available by us in various sizes, grades and other dimensions as per their needs. Offered range of Automatic Carton Sealing Machines is manufactured using optimum grade raw material that is sourced from the credited vendors of the industry.

Specifications:

Machine dimensions: l: 2150, W: 690, H:1650
Sealing speed: 25 m/min
Tape size: 2”, 2.5” & 3”
Power requirement: two motors of 0.5 HP

Carton Sizes:

Length: min.200, max.500
Width: min.2000 max.450
Height: min.150 max.500
Weight: min.5kg. max.30kg
Minimum carton ply-3

Salient Features:

Auto flop closer
Auto stopper
Counter (for counting no. of boxes sealed)
Top and bottom drives
Self centering guides ensure accurate centering
Quick & easy adjustment between batches of different carton sizes
Idle for batch production
Simple design & sturdy contractions requires minimum maintenance
No wastage of tape
Accurate centering & absolutely uniform overlap optimum tape usage
Carton can be loaded either vertically/horizontally within the above sizes
Adjustable leg heights to maximum of 300 mm

Sequence of operation:

A carton approaches the machine that flaps fully vertical
The carton flow will be regulated by power conveyor to provide adequate gap between the cartons
The speed of the conveyor should be lesser than the speed of the machine
The front minor flap is pushed automatically and rear minor flap is kicked down by the rear flap closer
Both major flaps are folded with side flap closer and tape is applied to the top and bottom of the carton with 2” overlap on the heading and trailing ends of the carton
